Violations Summary Report

Navigation from your Home screen:   > Violations Summary Report

Your employee role must have the Reports permission to access reports. See "Roles & Permissions" for more information.

Run the Violations Summary to view and export last month's violation information invoiced to your location and your customers, as well as chargeback fees billed to your location as a result of a customer dispute. This will help you stay on top of reconciling invoices and researching individual toll violations and chargebacks.

Criteria for inclusion

Tolls charged to customers and to the location are included based on their toll invoice date being within the reporting month.

Running the report

  1. On the Reports dialog, select Violations Summary Report from the list of reports.
  2. Select a reporting month, if different from the default (previous month). The previous month and past 11 months are available for selection. Tolls charged to customers and to the location are included based on their toll invoice date being within the reporting month.
  3. Click RUN REPORT. See "Understanding results" for more information about your report results.
  4. From your results, you can do any of the following:
    • View chargebacks and chargeback fees from disputes. By default, the report is set to display toll transactions billed to your location and your customers. To review transactions in which customers have disputed charges, resulting in "chargebacks" and chargeback fees billed to your location, select the Chargebacks option.
    • Adjust sorting and customize your report options for optimal viewing. . See "Customizing Viewing Options" in this topic.
    • Export Results. To export results to a Microsoft Excel file (.xlsx), click EXCEL. To export results to a PDF, click PDF.

Customizing Viewing Options

Reports are customizable to fit your viewing preferences. You can adjust this report in all of the following ways:

By default, the report is set to display toll transactions billed to your location and your customers. To review transactions in which customers have disputed charges, resulting in "chargebacks" and chargeback fees billed to your location, select the Chargebacks option.

The columns are updated accordingly. See "Understanding results" for more information about your results.

By default, all columns are included in your report results. To hide a report column, click the Column Settings icon () > Columns, and select the column's check box.

To reorder columns, click and drag column headers left or right. To expand the size of a column, hover your cursor to the right of the column, and click and drag to increase or decrease the column's width.

To sort results by a column, you can either:

  • Click the column header once to automatically sort results in ascending order (); click the header again to sort in descending order (); click the column header a third time to remove the sort. If no arrow is present in a column header, results are not sorted by that column.
  • Click the Column Settings icon () and select Sort Ascending or Sort Descending.

  1. Click the Column Settings icon () > Filter. Use the lists to indicate the criteria by which you want to filter results, and enter the value to be used for comparison.
  • For numeric values: Indicate whether you want to view results that are greater than or equal to, equal to, or less than or equal to a certain value.
  • For alphabetical values: Indicate whether you want to view a subset that starts with, contains, does not contain, ends with, or is equal to a certain value.
  1. To add more criteria, select AND or OR from the list. Then repeat the above steps using the second set of fields to type another value for comparison.
  2. Click Filter.

Understanding results

Key information is displayed in the upper left corner of your results: the reporting period, location name, TSD Number, and Location Code, as well as the totals in fees, tolls, and tolls paid by the dealer and customers.

The report displays all items on one page, by default. On the bottom of the report, you can choose to view a limited number of items per page, navigate to the next page of results (), and refresh your report results ().

Key Report Columns

Tolls

These columns are displayed when the Tolls option is selected, as opposed to Chargebacks.

Column Description

Agreement Number

Agreement Number of the agreement associated with the toll / violation, if applicable.
VIN VIN of the unit associated with the toll / violation.

License Plate

License Plate Number of the unit associated with the toll / violation.

Transponder ID

Transponder ID assigned to the unit associated with the toll / violation, as entered on the unit record.

Violation Date

Date and time the toll / violation was incurred on the agreement.
Violation Type Type of violations (e.g., Toll, Redlight, Speed, Parking, Stop Sign).
Authority Name Authority that issued the violation, if applicable.
Violation Description Description of the violation (e.g., entry plaza name for a toll).

Violation Amount

Amount of the toll / violation.
Dealer Violation Amount

Amount of the toll / violation.
Dealer Fee

The amount charged by TSD for credit card processing fees, known as pass-through fees.

If the customer didn't pay for the toll, the Dealer Fee is $0.00, since there were no credit card processing fees to recoup.
Dealer Message

The reason why the toll / violation was billed to the customer or the dealer.

For example, if successfully billed to the customer, the Reason is "Patron Payment Successful".

If billed to the dealer, possible reasons might be:

  • Patron Payment Failure: Billed to Patron False: The Bill Violation Charges toggle was turned off on the agreement, billing charges to the dealer instead of the customer.
  • Patron Payment Skipped: Toll Exempt.
  • Patron Payment Skipped: Card token not present: A credit card token was not on file on the agreement, so the customer could not be charged. In this case, the dealership is billed.
  • Patron Payment Skipped: Agreement not found Based on the information received from the toll authority, such as license plate, transponder ID, and/or toll date, the system could not find an open agreement for that date / time.
  • Patron Payment Failure : Transaction Failed 10 - Late response from issuer
  • Patron Payment Failure : Transaction Failed 11 - Invalid original transaction status
  • Patron Payment Failure : Transaction Failed 13 - The invoice number is invalid
  • Patron Payment Failure : Transaction Failed 607 - Invalid recurring sale token identifier

Chargebacks

These columns are displayed when the Chargebacks option is selected, as opposed to Tolls.

Column Description

Agreement Number

Agreement Number of the agreement associated with the dispute.
Invoice Date

Date and time the invoice was generated for the chargeback.
Dispute Date Date and time of the chargeback.

Dispute Amount

Amount of the charge disputed by the customer.
Fee Amount

Amount of the chargeback fee invoiced to the location.

Report Samples

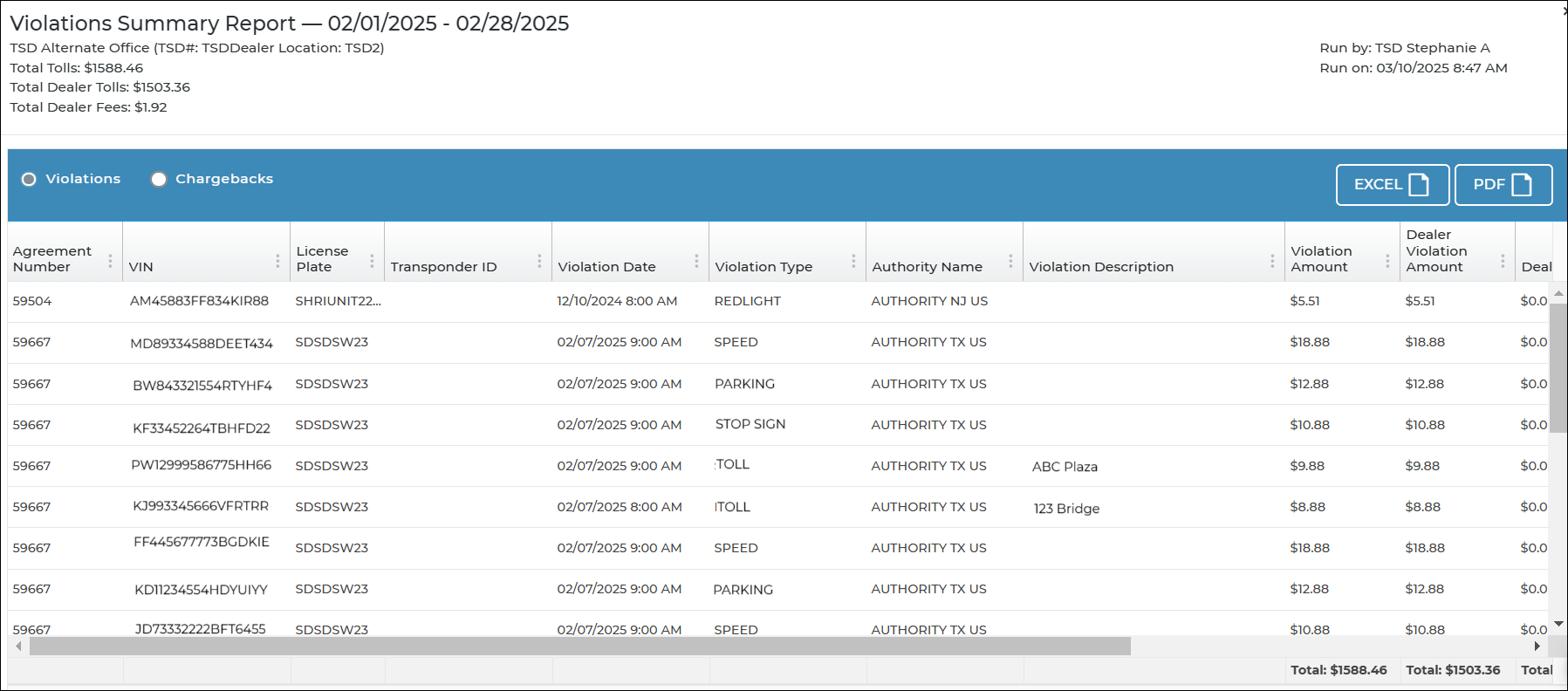

Violations


Hover to view the full-sized image.

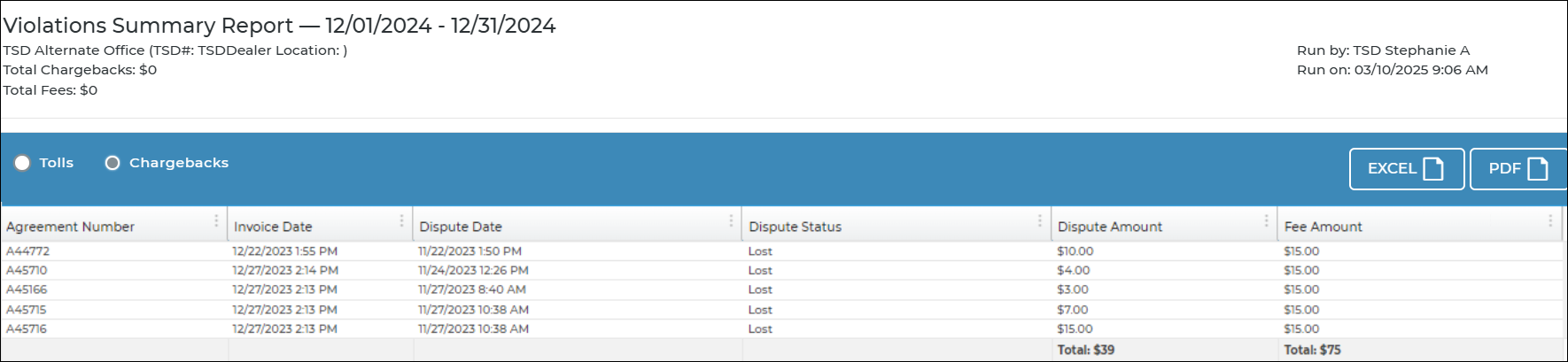

Chargebacks


Hover to view the full-sized image.
